Iso 7241-1 Series A Half-for-half Fluid Transfer Hydraulic Quick Coupling

FOB Reference Price:Get Latest Price
US $1.91-15.2 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
HUA TAI
Model Number:
7241-1A
Type:
Coupling
Material:
Stainless Steel
Technics:
Forged
Connection:
Female
Shape:
Reducing
Head Code:
Hexagon
Application:
construction equipment,forestry equipment,oil tools
Standard:
JIS
Name:
hydraulic quick coupling
Color:
White yellow
Product name:
7241-1A
Size:
1/4"-2"
Certificate:
ISO 9001
Surface treatment:
Sand Blasting
Usage:
Oil Gas Water Industrial
Thread:
BSPP BSPT NPT
Supply Ability
Supply Ability:
200000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Usually as per customer's requests.
Common packing information: Small size in bundles, big size in bulk, some sizes with plastic cap to protect both ends, seaworthy packaging.
Port
Tian jin ,Qing dao ,Shang hai ,Da lian
Product Description

Product Application:


The HT-A1 series brings to the industry a proven design for use on construction equipment,forestry equipment, oil tools,Oil equipment,steel maill machinery, and other demanging hydraulic applications.

Body Size (in)
  1/4
  3/8
  1/2
  3/4
    1
 1-1/4
 1-1/2
    2
Code
  02
   03
   04
    06
   08
   10
   12
   16
Steel
 34.5
  27.6
  27.6
  20.7
  20.7
  20.7
  13.8
  13.7
Stainess Steel
  13.8
  13.8
   10.4
  10.4
     7
     7
     7
     7
Brass
     7
    7
     7
     7
     7
     7
     7
     7

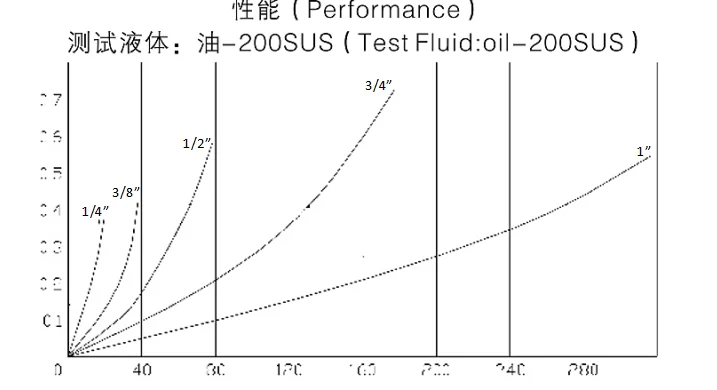

Rated Flow(l/min)
  11.5
   23
  45.5
   106
  190
   330
   830
   900
Temperature Range(NBR)
                                                              -20°C-100°C
Temperature(FKM)
                                                              -20°C-180°C

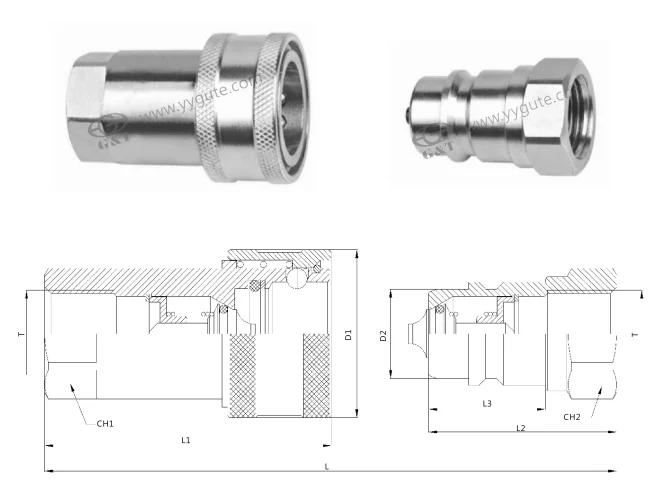

Main Features

1) Poppet valves available to prevent uncoupled leskage.

2) Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.

3) Critical parts are hardened for durability.

4) Dependable ball-locking mechanism holds the mating halves together.

5) Socket and plug are precision machined from solid bar stock.

6)HT-A1 Series conforms to the standard of ISO7241-1A.

7)Compatible with PARKER 6600 Series,FASTERAMV Series.AEROQUIP 5600 Series and HANSEN HA15000 Series.

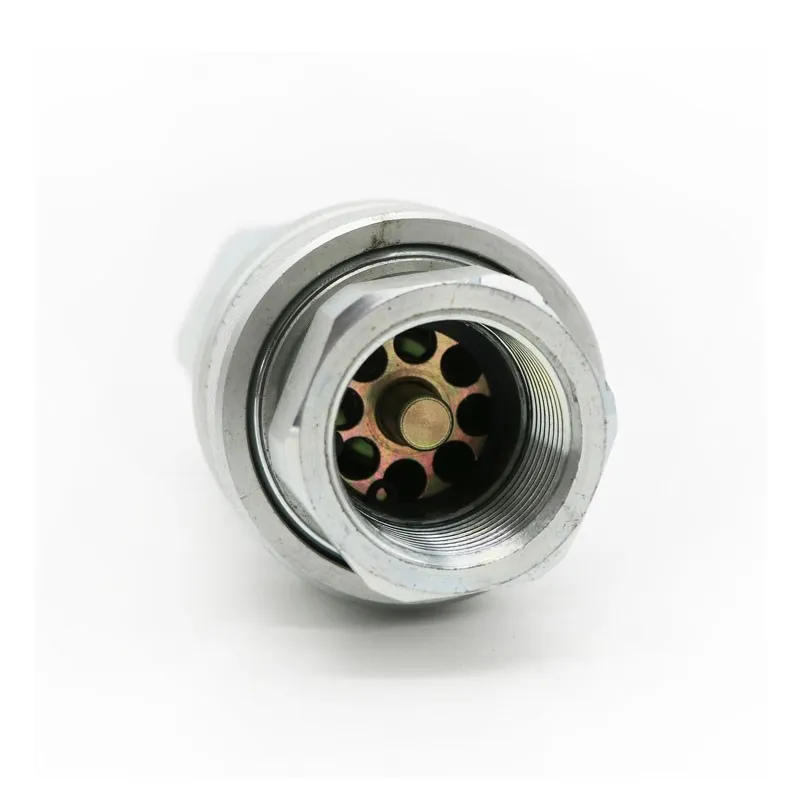

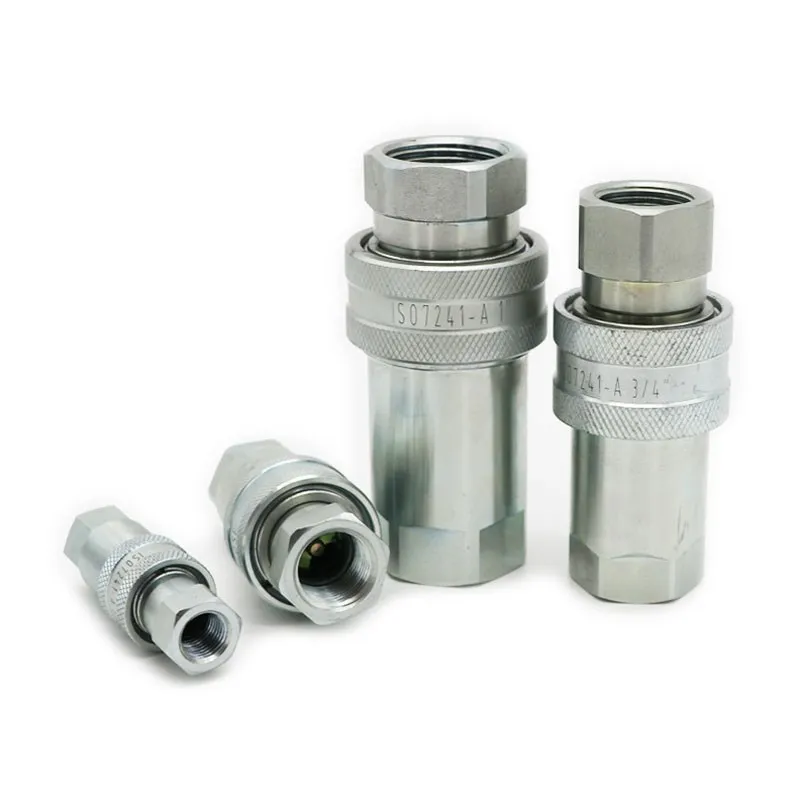

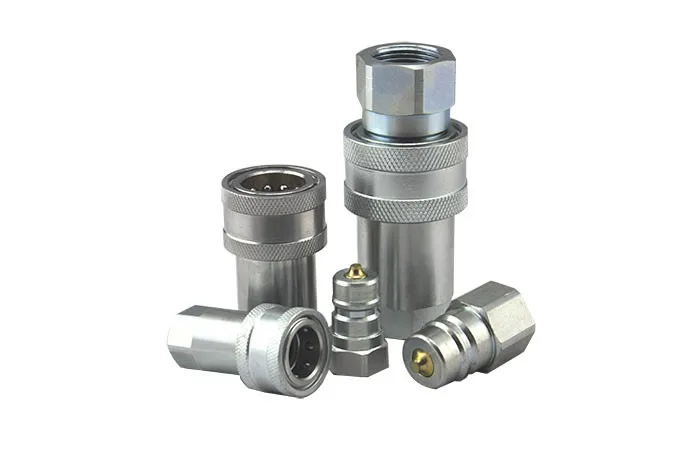

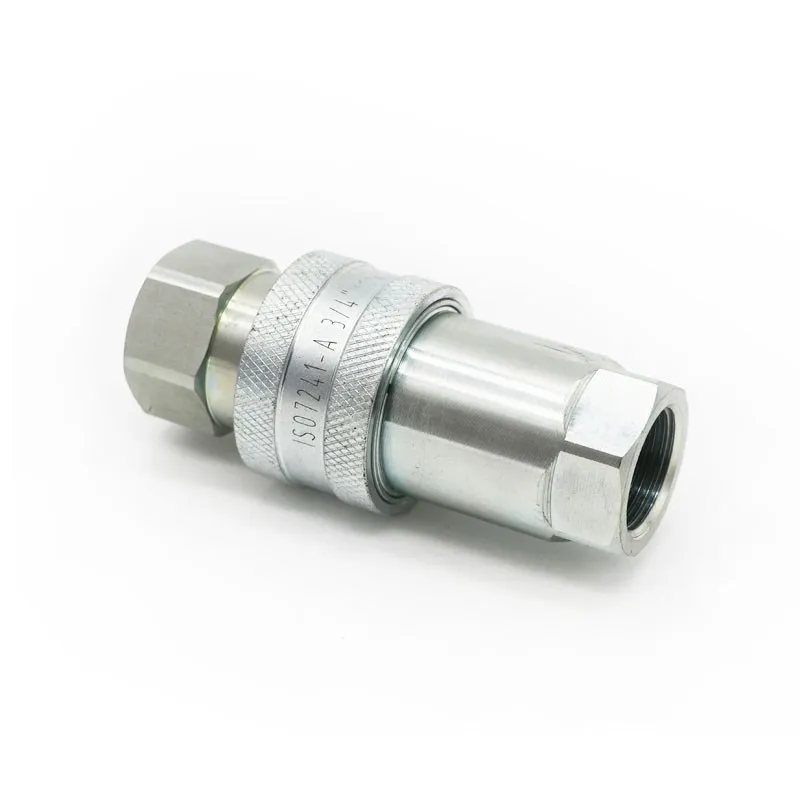

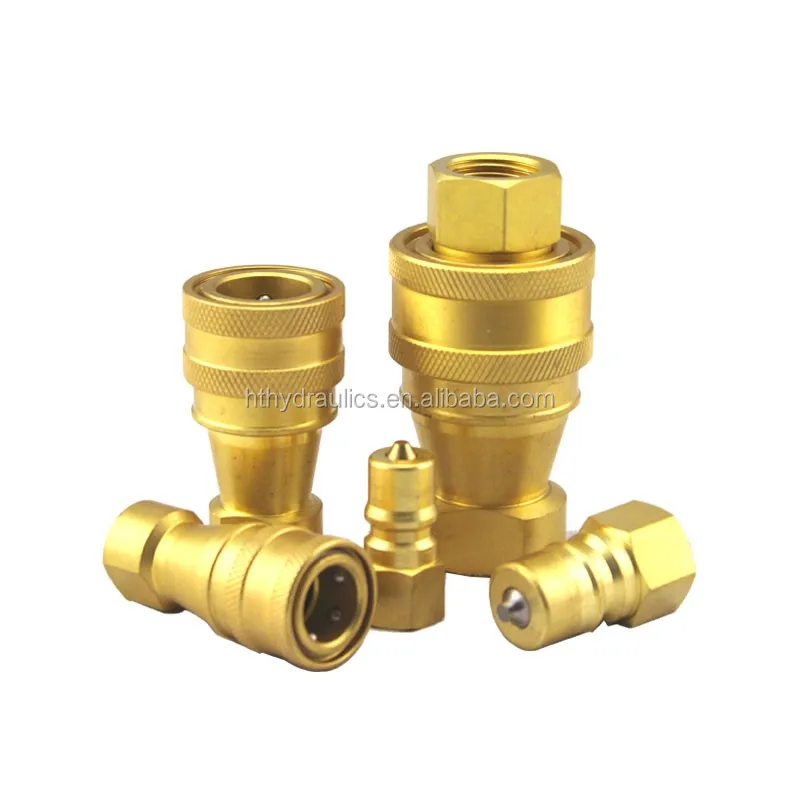

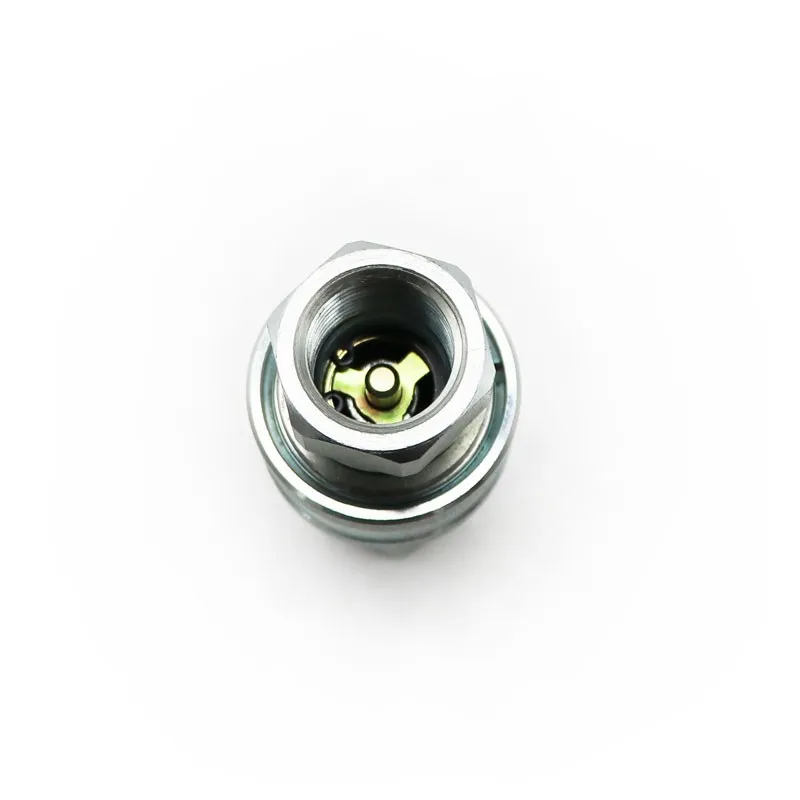

Detailed Images

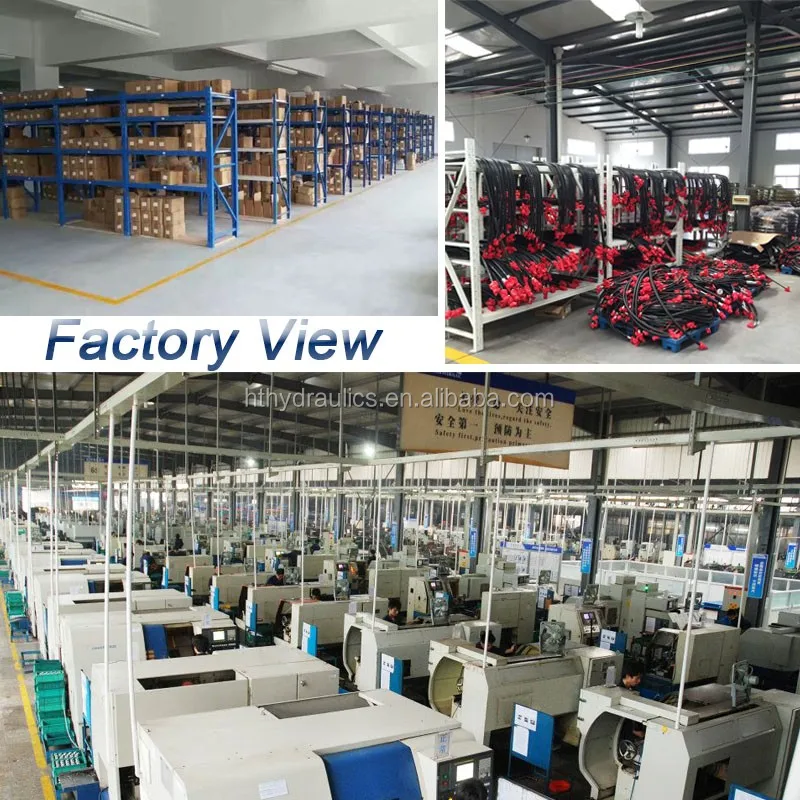

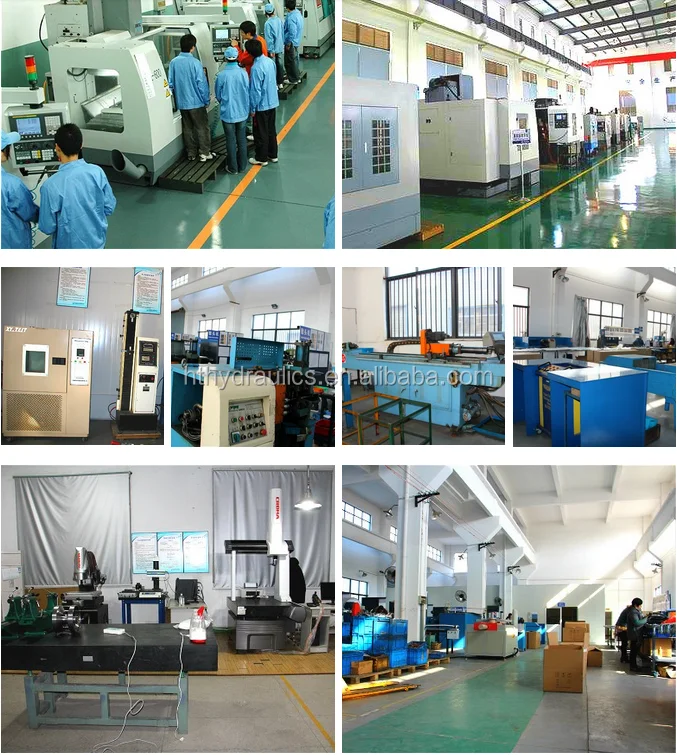

factory view
Certifications
Our Service

Passed the ISO9001:2008 quality system authentication and ROHS authentication..

We are currently pugrading sofeware for our computerized machinery and we are always on the market for new and improved technology,both  in our mechinery and our manufacturing process.

Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
